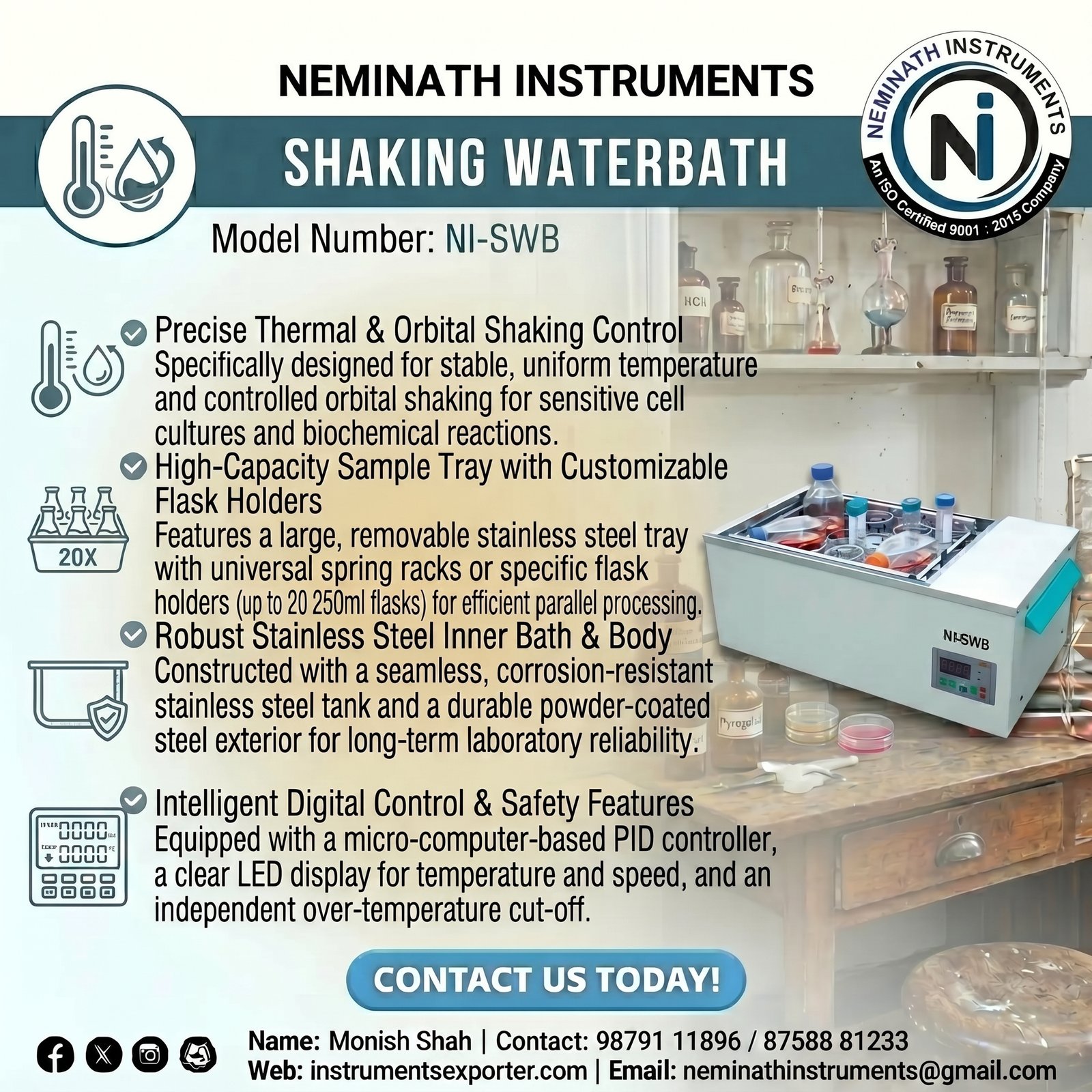

Model Number : NI-SWB
HSN CODE : 84798200
- Bath designed for studies on Tissue metabolism, Enzymes, and Protein coagulation & experiments requiring shaking of subject matter at a constant speed under a controlled temperature environment.
- Double-walled construction, Argon welded Leak proof Inner tank made of Stainless steel – 304 Grade & Exterior made of CRCA Steel– Powder coat finished.
- Inner tank made of Stainless Steel – 316 grade and Exterior of Stainless Steel – 304 grade in GMP MODEL.
- High-density glass wool insulation to prevent heat loss & ensure constant temperature.
- Hinged Pyramid shape lid provided avoids Evaporation of water and makes condensed water to fall back into the bath.
- Shaking tray consists of Lotus clamps to hold Erlenmeyer flasks.
- Shaking mechanism comprises a Variable speed PMDC geared motor fixed on the right side & coupled to the shaking tray which shakes linearly.
- Shaking Stroke: 25 mm.
- Shaking speed can be controlled by means of an Electronic Speed Controller cum Digital RPM Indicator between 50 RPM to 150 RPM.
- Temperature controlled by Dual Display Microprocessor based PID Temperature controller & PT – 100 Sensor.
- Temperature Range: 5°C above ambient to 95°C with an Accuracy of ±1°C or better.
- Operates on 230 Volts AC Single phase 50 Hz.
|
MODEL |
BATH SIZE (L X W X D) |
CAPACITY |
WATTAGE |
MAXIMUM SHAKING CAPACITY |
|
NI-SWB-01 |
16” X 12” X 10” |
100 ML X 12 Nos. / 250 ML X 6 Nos. |
1000 |
1.5 Ltrs. |
|
NI-SWB-02 |
18” X 14” X 10” |
500 ML X 6 Nos. |
1500 |
2 Ltrs. |
|
NI-SWB-03 |
20” X 16” X 10” |
250 ML X 12 Nos. |
2000 |
3 Ltrs. |
OPTIONAL ACCESSORIES:
A. Digital Timer of 999 Minutes for Timed shaking process.
