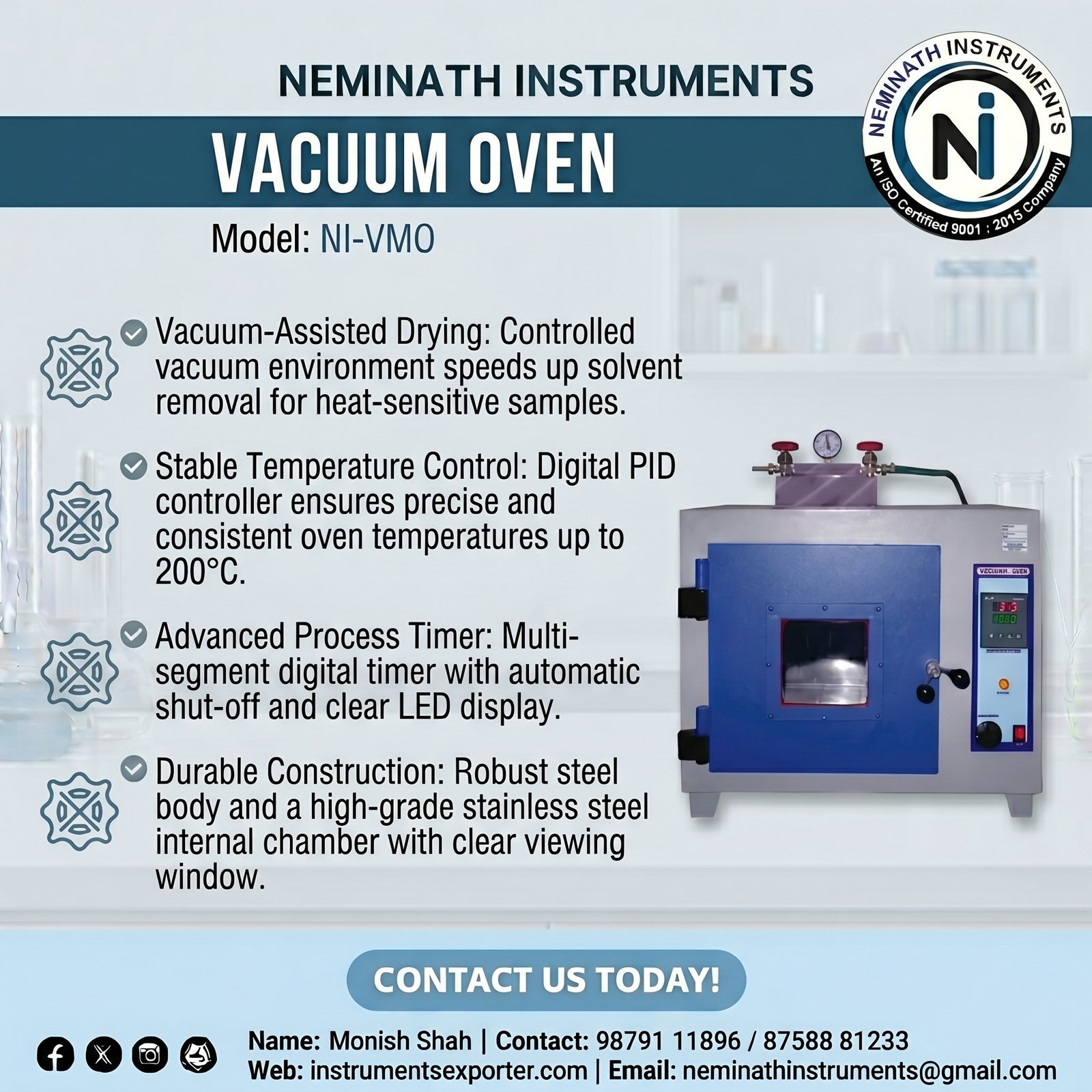

Model Number : NI-VMO
HSN CODE : 85141000
- Double Wall Construction, Inner chamber made of Stainless Steel- 304 grade with Exterior CRCA Steel with Powder coat finish.
- Inner made of Stainless Steel – 316 grade and Exterior of Stainless Steel – 304 grade in
- Gap between the two walls filled with high density low thermal mass glass wool insulation to minimize the skin
- Vacuum levels are controlled up to 760 MM/Hg.
- Food grade Silicon door gasket and positive door latch assures tight seal at all
- Toughened glass window allows clear observation of
- Two stop cocks are fitted on the side of One stop cock is continuously connected to the Vacuum Pump and the second one is used to release the Vacuum or for purging inert gases inside the Chamber.
- Non perforated Stainless-Steel
- Heating element made of best quality 80:20 Nichrome wire is wound on the outer surface of the inner
- Temp Range: 50oC to 200o
- Temperature controlled by Dual display Microprocessor based PID Controller & PT – 100 Sensor with
|
MODEL |
Tank Dimension (LXBXH) MM |
Capacity (Liters.) |
Ultrasonic Power in Watts |
|
NI-USC – 01 |
240 x 140 x 65 |
1.5 |
50 |
|
NI-USC – 02 |
235 x 135 x 100 |
2.25 |
70 |
|
NI-USC – 03 |
300 x 150 x 100 |
3.5 |
100 |
|
NI-USC – 04 |
250 x 150 x 150 |
5.5 |
150 |
|
NI-USC – 05 |
300 x 150 x 150 |
6.5 |
200 |
|
NI-USC – 06 |
300 x 180 x 150 |
8.0 |
200 |
|
NI-USC – 07 |
300 x 200 x 150 |
9.0 |
250 |
|
NI-USC –08 |
300 x 230 x 150 |
10.0 |
250 |
|
NI-USC – 09 |
300 x 300 x 150 |
12.0 |
300 |
|
NI-USC – 10 |
350 x 300 x 200 |
21.0 |
400 |
|
NI-USC – 11 |
400 x 400 x 150 |
24.0 |
500 |
|
NI-USC – 12 |
400 x 300 x 250 |
30.0 |
500 |
ROUND MODELS:
|
MODEL |
CHAMBER SIZE |
RATING WATTS |
TRAYS |
|
NI-VMO-01 |
9″ DIA x 12″ DEPTH |
700 W. |
2 NOS. |
|
NI-VMO-02 |
12″ DIA x 15″ DEPTH |
950 W. |
2 NOS. |
|
NI-VMO-03 |
15″ DIA x 18″ DEPTH |
1100 W. |
3 NOS. |
RECTANGULAR MODELS:
|
MODEL |
CHAMBER SIZE W x D x H |
RATING WATTS |
TRAYS |
|
NI-VOR-01 |
08″ X 08″ X 12″ |
1000 |
2 NOS. |
|
NI-VOR-02 |
12” X 12” X 12” |
1200 |
2 NOS |
|
NI-VOR-02 |
12″ X 12″ X 16″ |
1750 |
2 NOS. |
|
NI-VOR-03 |
14″ X 14″ X 20″ |
2000 |
3 NOS. |
|
NI-VOR-04 |
18″ X 18″ X 24″ |
2250 |
3 NOS. |
